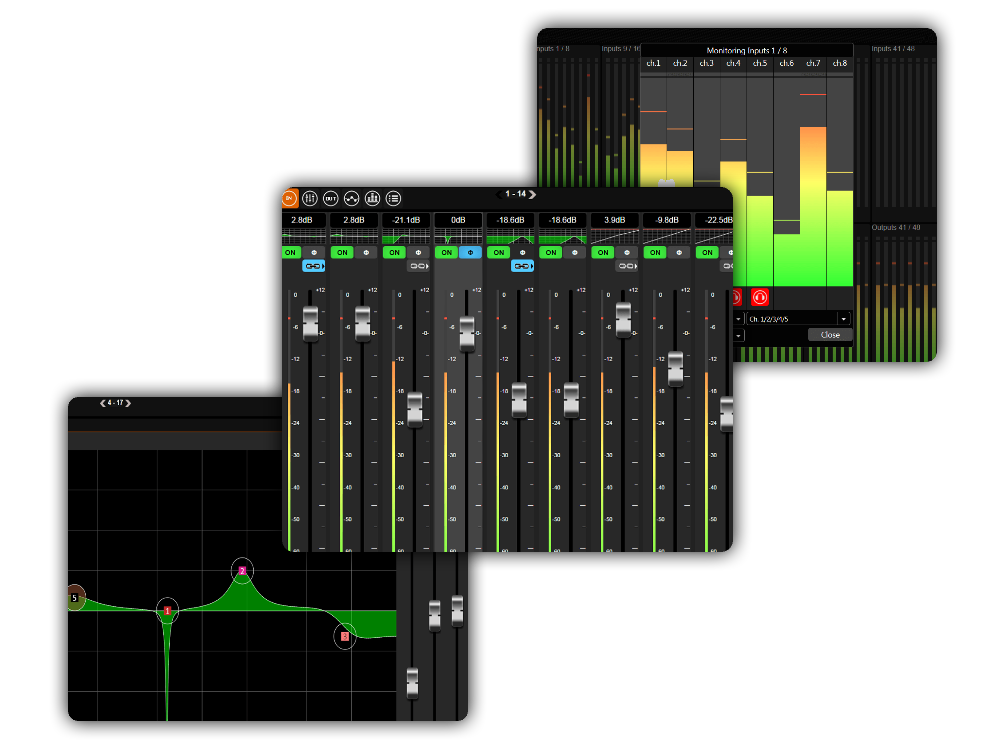

avs-monitor-images

AVS-Monitor is a free Windows software that allows to detect and manage the settings of all AuviTran devices, as well as some other manufacturers, and way more!

AVS-Monitorは、以下の機能を備えた無料のWindowsソフトウェアです:

  • すべてのAuviTran製品および一部他社製品の検出と設定管理
  • インターフォーマットオーディオゲートウェイの設定(Dante / AES-EBU / AES67 / Madi / Cobranet / EtherSound / ADAT / アナログ)
  • AVBx7およびAVBx3M内部オーディオルーティングコントロール(マトリクス制御)
  • 最大895チャンネルのモノラル、ステレオ、5.1の音声チャネルのリモートモニタリング
  • アラーム履歴を含む機器の監視
  • VLANや冗長化などを簡単に設定できるネットワーク監視および設定ページ(AxC-SWD5G対応)
  • 複数のマスタークロック(AxC-DX4I / AxC-ADSP / AxC-DS32IOボード)を同一ネットワーク上で使用可能なクロック設定
  • DANTE経由でMADIをトンネル制御
  • シグナルプロセッシング、トリム / EQ / コンプレッサー / ディレイ(AxC-ADSPおよびAVDT-BOB対応)
  • AxC-AX4Mカード設定によるRIOまたはAD8HRモードでのリモートコントロール
  • EtherSound Net-Patchの統合管理
  • AuviTran機器用ファームウェアマネージャーの統合
  • ネットワークQOS診断
  • 機器およびネットワーク構成のインポート / エクスポート
  • AVBx7およびAVBx3Mでの自動化機能の管理
    • トリガー条件:
      • GPI立ち上がり/立ち下がり
      • GPO立ち上がり/立ち下がり
      • GPIフェーダー
      • オーディオエラー / ストリーム消失
      • オーディオエラーなし / ストリーム正常
      • クロック非同期
      • クロック同期
      • カードアライブ
    • アクション:
      • プリセットのロード
      • フローの有効化 / 無効化
      • チャンネルの有効化 / 無効化
      • チャンネルのミュート / ミュート解除
      • チャンネルのパッド / パッド解除
      • ファンタム電源のオン/オフ
      • 位相反転のオン/オフ
      • チャンネルゲインの調整
      • マトリクスパッチ
      • マトリクスミュート
      • GPOのオン/オフ
      • マスタークロックの変更

AVS-Monitorは、以下の機能を備えた無料のWindowsソフトウェアです:

  • すべてのAuviTran製品および一部他社製品の検出と設定管理
  • インターフォーマットオーディオゲートウェイの設定(Dante / AES-EBU / AES67 / Madi / Cobranet / EtherSound / ADAT / アナログ)
  • AVBx7およびAVBx3M内部オーディオルーティングコントロール(マトリクス制御)
  • 最大895チャンネルのモノラル、ステレオ、5.1の音声チャネルのリモートモニタリング
  • アラーム履歴を含む機器の監視
  • VLANや冗長化などを簡単に設定できるネットワーク監視および設定ページ(AxC-SWD5G対応)
  • 複数のマスタークロック(AxC-DX4I / AxC-ADSP / AxC-DS32IOボード)を同一ネットワーク上で使用可能なクロック設定
  • DANTE経由でMADIをトンネル制御
  • シグナルプロセッシング、トリム / EQ / コンプレッサー / ディレイ(AxC-ADSPおよびAVDT-BOB対応)
  • AxC-AX4Mカード設定によるRIOまたはAD8HRモードでのリモートコントロール
  • EtherSound Net-Patchの統合管理
  • AuviTran機器用ファームウェアマネージャーの統合
  • ネットワークQOS診断
  • 機器およびネットワーク構成のインポート / エクスポート
  • AVBx7およびAVBx3Mでの自動化機能の管理
    • トリガー条件:
      • GPI立ち上がり/立ち下がり
      • GPO立ち上がり/立ち下がり
      • GPIフェーダー
      • オーディオエラー / ストリーム消失
      • オーディオエラーなし / ストリーム正常
      • クロック非同期
      • クロック同期
      • カードアライブ
    • アクション:
      • プリセットのロード
      • フローの有効化 / 無効化
      • チャンネルの有効化 / 無効化
      • チャンネルのミュート / ミュート解除
      • チャンネルのパッド / パッド解除
      • ファンタム電源のオン/オフ
      • 位相反転のオン/オフ
      • チャンネルゲインの調整
      • マトリクスパッチ
      • マトリクスミュート
      • GPOのオン/オフ
      • マスタークロックの変更
avs-monitor-images

ダウンロード

Firmware AxC-Dante:Rioモード用パッチ
Windows用の安定版リリース:V6.84.42(2024年5月)
インターネット接続不要のWindows用安定版リリース:V6.84.42(2024年5月)
Windows XP用 AVS-Monitor

情報

  • 追加機能: AxC-AES67カードのサポートを追加
  • 追加機能: ALP-DANTE PCIeカードのサポートを追加
  • 追加機能: ALP-AES67 PCIeカードのサポートを追加
  • 追加機能: ファンアラート機能を追加
  • 追加機能: クロックのPPM表示機能を追加
  • 追加機能: プリセット保存時にGPIOおよびオートメーション設定を含めるオプションを追加
  • 追加機能: DT4Oでチャンネルロック機能を追加
  • 修正点 : AxC-SWD5GのGUIがVLAN設定ウィンドウで点滅する問題を修正(@Ben に感謝!)
  • 修正点 : Yamahaの接頭辞(Yxxx)を持つ名称がAxC-Danteデバイスで常に許可されるように修正
  • 修正点 : AxC-ES100ファームウェア更新後のMACアドレス破損問題を修正
  • 修正点 : AxCカードのIPアドレスがJavaScript WebViewで正しく表示されない問題を修正
  • 修正点 : AV-WALLおよびAVDT-BOBデバイスで設定をファイルに保存できない問題を修正
  • 修正点 : AxC-DSPのチャンネル名・デバイス名が、シーン保存や96kHzミキサー、バックアップ時に正しく反映されない問題を修正
  • 修正点 : PCIeカードの手動再起動リクエスト処理を修正
  • 修正点 : Microsoft WebViewが過剰にインストールされる問題を修正
  • 修正点 : Dante Controllerがインストールされていない環境でのインストール問題を修正
  • 修正点 : AxC-DSPでフェーダーをダブルクリック後にフェーダーが解除されない問題を修正(@Matthias に感謝!)

Package Avs-FirmwaresBundle_25.06.02

AVS-Firmware-AVBx3_5.007.13551_L5.007
  • AVBx3 version: 5.007
    • Update code with the latest functions to manage the new AxC firmware
    • Optimization of start-up time
    • Bypass of the old method of reading the serial number when (S/N == 0) or (S/N == 0xFFFF)
    • - Allows in supervisor mode to force a new S/N on an old firmware core without S/N
    • Resolve ASRC management on AVBx3 without matrix
    • - AxC-ADSP should be in slot 2 when in ASRC mode
    • Fix the change to a new clock source that is not locked
    • The lock status of a card with multi sources only reflect the current source...
AVS-Firmware-AiC-CORE-X-A7-FPGA_1.006.14861_F1.015
  • AiC-CORE-X-A7-FPGA version: 1.015
  • Add the "Mute Slot" capability
AVS-Firmware-AiC-xCore_1.028.13058_F2.047
  • AiC-xCore version: 2.047
    • - Flash access commands optimization to speed-up firmware update
    • - Improve security access on some internal registers
AVS-Firmware-AVBx7_4.028.15841_L4.028
  • AVBx7 version: 4.028
    • Last changes since version 3.006
    • - Fixed AxC-ADSP settings when changing mode from ASRC to DSP in a preset
    • - Managing the MailBox of Slot 14 if it is available for AVBx display manager
    • - Added Mbx_Core_Info Status in Page 0 of slot 14 for AVBx display manager
    • - Adding Brightness values in page CSPR of slot 14 for AVBx display manager
    • - Added Load/Save functions in Automation
    • - Increasing max wait time for Load/Save functions to manage new firmwares
    • - Adding CoreX-FPGA MailBox Management for futur AVBx Display inetrface
    • - Triggers in automation work on change instead of level for all functions (previously this was only done for Rise/Fall/Change functions)
    • - Added management of extended SPI zones when available
    • - Address errors are now reported in QOS AxC-MEM
    • - SPI transaction optimizations
    • - Added timer for inter SPI transaction to avoid unecessary active wait at end of each transaction
    • - Management of area with extended memory space (NBPMO > 192)
    • - Modified Preset/Scene to managed extended memory space
    • - Added the slot15 throughput performance in QOS page for the read write bursts
    • - Forces now a clear of old trigger state when the trigger is off.
    • - Improved SPI Burst transfers in reading
    • - First version 4.xxx with modification of the functions associated with the M0/M4 cores
    • - The M0 CORE now manages the network parts (Ethernet, UDP and UPI)
    • - The M4 Core now manages the AxC cards (SPI, MailBox, SpiFi, Automation)
    • - The management of a Linkscript is now common and shared by the 1st and 2nd startup programs of the M4 core
    • - Periodically refresh SR1 cache to update SPI capabilities in case of firmware downgrade without reboot
    • - Added Core-FPGA for SR1 refresh and page info for the same reason
    • - Management of FPPR command and semaphore in UPI8 and Extended MailBox
    • - Add Extended FPPR MailBox flag in Core info Status register
    • - Avoid processing a new FPPR Mailbox command while waiting for an FPPR command to complete
    • - First implementation of SDR and DDR management
    • - Management of the "Wide Area" indicator of the Mailbox. When it is activated, the mailbox accesses the full size zone otherwise only the limited legacy space
    • - Management of the UDP UPI16 protocol and Wide Area to access the entire memory space of the areas.
    • - For backward compatibility reasons: UPI16 and UPI8 uses the same frame format.
    • - The Wide Area flag determines if there is an access to extended space in an area when set or to the limited legacy space when reset.
    • - Regardless of the access method (Mailbox, UPI8, ...) the use of the direct access area only gives access to the limited legacy space.
    • - Added the SLIM and WIDE mode to area management in Read/Write/T&S/T&R for Legacy/Extended area access
    • - Adapted MailBox et UPI8 to use areas in slim or wide mode
    • - Management of last version of matrix that can use multiple clusters of 8x slots x 64 channels
    • - Changed the management of SR1 and Page_info cache refresh
    • - Added Area-Burst mode tests if available during the SPI Speed adjustments at start
    • - Changed the typical SPI speeds on A7/S6
    • - Added new page in QOS area for additional CoreX LPC statuses with current LED display on front panel
    • - Changed SPI clock pin settings to fix AxC-Card-S6 SPI errors on slot4/6 of CoreX-A7
    • - Added Led Status for SPI errors detected at start
    • - Added Led Fault when GPIO/WCLK is not detected
    • - Added specific Auto Test of SPI on all slots
    • - Added a new FPPR command parameter to run specific Auto Test of SPI on all slots
    • - Fixed bug in recalling/saving scenes/presets when accessing a wide area is required to access all data
    • - Optimization of Led driver functions
    • - Fixed an issue during a soft reset where the reset was not sent to the board coprocessors in the last slot
    • - Set CoreX Status to "discovery" mode on software reset
    • - Fixed DMA issues which was introduced in previous version 4.0
    xx
    • - Fixed a bug in Clear Matrix introduced in previous versions 4.0xx. All patches are now cleared including for slots without a card
    • - Fixed a bug on AxC-ADSP in ASRC mode introduced in previous versions 4.0xx
    • - After a first loop discovery reset the slot where a card was not detected to give a second chance to detect them (i.e. AxC-SWD5G)
    • - Added an event area to indicate an IP address change and a Preset modification
    • - New IP/MASK address change management with deferred addresses changes that no longer requires a reboot
    • - Fixed an issue with AxC card temperature loading/management introduced in version 4.027
    AVS-Firmware-AxC-GPIO-Wclk_2.000.9994_L2.000
    • AxC-GPIO-Wclk version: 2.000
      • Firmware optimization
      • Reorganization of GPI treatment with 2 couples of input voltage threshold (VIL1, VIH1) and (VIL2, VIH2)
      • Provides information status of validity for the GPIs with these 2 couples of input voltage threshold
    AVS-Firmware-ALP-AES67-A7_1.043.16441_F1.190_Z2.006
    • ALP-AES67-A7 versions: 1.190 / 2.006
      • New kernel 1.8.1
      • NMOS: add IS-04/05 version to advanced pages
      • NMOS: senders/receivers list empty after registry failure with mDNS
      • NMOS: prevent users to use web port for NMOS
      • fix ICMP for unicast stream
      • NMOS: receiver label not updated until source is patched
      • NMOS: device/node properties inconsistent at startup
      • NMOS: improved registry failover resilience
      • prevent from restarting if IP is renewed when FW updating
      • Device remote command not acknowledged with command reboot
      • network vulnerabilities: disable ICMP timestamp responses
      • support for create/listen sources/sinks in the multicast range 224.x.x.x and x.x.x.255
      • Remove ASIO clock RAVENNA stream reservation limitation
      • audio mute when ST-2022 sink stops receiving on secondary port on 3-NIC devices on some configurations
      • fix on allowing custom I2S module to have 0 inputs or 0 outputs
      • Use default web service.
      • mprove audio bloc to allow asymetric driver (Play without Record and opposite)
    AVS-Firmware-ALP-DANTE-A7_1.067.16416_F1.190_D11.014
    • ALP-DANTE-A7 versions: 1.190 / 11.014
      • UPI8 Evolution
      • Improve audio bloc to allow asymetric driver (Play without Record and opposite)
    AVS-Firmware-AVDT-BOB-AE4IO_1.070.14448_L3.021_D1.005
    • AVDT-BOB-AE4IO versions: 3.021 / 1.005
      • Fix disconnection with several web BOB page open
      • New gain management db R68-2000 / dBu / dB legacy
    AVS-Firmware-AVW-DT4I_2.087.14466_L2.112_D5.006
    • AVW-DT4I versions: 2.112 / 5.006
      • Fix: ADC init based on register detection.
      • New: Add internal IHM register in AxC-Mem Err&Tst page.
      • New: Disable LED dimmer mode in active mode.
      • New: Allow Bluetooth activation with long push on the button.
      • Fix: Bluetooth disconnection status was not working in some very case.
    AVS-Firmware-AxC-ADSP_2.014.14729_F2.011_L2.016
    • AxC-ADSP versions: 2.011 / 2.016
      • New: Support UPI8 protocol.
      • New: New mailbox protocol acess and exteneded mailbox to 8 page buffer.
      • Fix: New IP stack version. Improvement of connection reliabilty.
      • Fix: new save, load internal mechanism.
      • Fix: Dynamic pagination of AxC-Mem of LPC from FPGA.
      • Fix: Update webservice: fix scene display of ADSP.
      • Fix: Channel label load / saved correctly.
      • Change the Vumeter lower limit from -48dB to -72dB
    AVS-Firmware-AxC-AES67-A7_1.021.14726_F1.020_Z1.036
    • AxC-AES67-A7 versions: 1.020 / 1.036
      • Fix internal IT management to avoid flooding on burst write
      • DMA page is no longer loaded (when exists) to avoid rare cases of undesired registers writes at load
      • Change some internal I/O number registers to read-only
      • Added audio router management with default initialization.
      • Correction of channel <=> router <=> application naming
      • Added blocking of sample rate configuration from the web interface.
      • Change the Vumeter lower limit from -48dB to -72dB
    AVS-Firmware-AxC-AT32IO_1.016.14642_F4.015
    • AxC-AT32IO version: 4.015
      • Change some internal I/O number registers to read-only
      • DMA page is no longer loaded (when exists) to avoid rare cases of undesired registers writes at load
    AVS-Firmware-AxC-AVB_4.183.14642_F2.099_L2.039_X8.072
    • AxC-AVB versions: 2.099 / 2.039 / 8.072
      • Change some internal I/O number registers to read-only

      • DMA page is no longer loaded (when exists) to avoid rare cases of undesired registers writes at load
    AVS-Firmware-AxC-AE8M_1.021.14642_F2.023
    • AxC-AE8M version: 2.023
      • Change some internal I/O number registers to read-only
      • DMA page is no longer loaded (when exists) to avoid rare cases of undesired registers writes at load
    AVS-Firmware-AxC-AS16MO-V2_1.010.14274_F1.018
    • AxC-AS16MO-V2 version: 1.018
      • Change the In/Out/Global mute behaviour to ensure signal is still routed to vumeter when device muted
    AVS-Firmware-AxC-AX4M_1.020.14642_F4.025
    • AxC-AX4M version: 4.025
      • Change some internal I/O number registers to read-only
      • DMA page is no longer loaded (when exists) to avoid rare cases of undesired registers writes at load
    AVS-Firmware-AxC-AX4I_1.024.14642_F7.023
    • AxC-AX4I version: 7.023
      • Change some internal I/O number registers to read-only
      • DMA page is no longer loaded (when exists) to avoid rare cases of undesired registers writes at load
    AVS-Firmware-AxC-CN32IO_1.015.14642_F2.020
    • AxC-CN32IO version: 2.020
      • Change some internal I/O number registers to read-only
      • DMA page is no longer loaded (when exists) to avoid rare cases of undesired registers writes at load
    AVS-Firmware-AxC-DANTE_2.100.14739_F2.056_D10.062
    • AxC-DANTE versions: 2.056 / 10.062
      • DMA page is no longer loaded (when exists) to avoid rare cases of undesired registers writes at load
      • Change the Brooklyn reset system to avoid some blocking issues
      • Add remote NXAMP device monitoring ( Brooklyn3 )
      • Fix abusive lock
      • Change the Vumeter lower limit from -48dB to -72dB
    AVS-Firmware-AxC-DANTE-A7_1.036.14739_F1.015_D10.062
    • AxC-DANTE-A7 versions: 1.015 / 10.062
      • Bug fix on HA-Remote configuration mode issues (internal Brooklyn reset management).
      • Extension of CSPR pages number.
      • DMA page is no longer loaded (when exists) to avoid rare cases of undesired registers writes at load
      • Add remote NXAMP device monitoring ( Brooklyn3 )
      • Fix Factory Reset
      • Fix abusive lock
      • Change the Vumeter lower limit from -48dB to -72dB
    AVS-Firmware-AxC-DX8I_1.017.14649_F6.030
    • AxC-DX8I version: 6.030
      • Change some internal I/O number registers to read-only
      • DMA page is no longer loaded (when exists) to avoid rare cases of undesired registers writes at load
    AVS-Firmware-AxC-ES100_1.013.13607_F27.012
    • AxC-ES100 version: 27.012
      • Bug fix on PID that could disable the ASIO capability
    AVS-Firmware-AxC-GPIO16_2.002.9994_L2.002
    • AxC-GPIO16 version: 2.002
      • Firmware optimization
      • Reorganization of GPI treatment with 2 couples of input voltage threshold (VIL1, VIH1) and (VIL2, VIH2)
      • Provides information status of validity for the GPIs with these 2 couples of input voltage threshold
      • Provides relay activation status for GPOs
    AVS-Firmware-AxC-MADI_2.024.14729_F12.019_L1.038
    • AxC-MADI versions: 12.019 / 1.038
      • Change some internal I/O number registers to read-only
      • DMA page is no longer loaded (when exists) to avoid rare cases of undesired registers writes at load
      • Change the Vumeter lower limit from -48dB to -72dB
    AVS-Firmware-AxC-MADI_SFP_2.024.14729_F12.019_L1.038
    • AxC-MADI_SFP versions: 12.019 / 1.038
      • Change some internal I/O number registers to read-onlyy
      • DMA page is no longer loaded (when exists) to avoid rare cases of undesired registers writes at load
      • Change the Vumeter lower limit from -48dB to -72dB
    AVS-Firmware-AxC-SWD5G_1.001.7086_L1.010
    • AxC-SWD5G version: 1.010
    AVS-Firmware-AxC-SWD5G_1.001.7086_L1.010
    • AxC-SWD5G version: 1.010

警告:必ず、すでにEtherSoundがインストールされていないか確認してください。

Windows 10/11 では、以前のバージョンの上にEtherSoundドライバーを再インストールしてはいけません。

もし以前のバージョンがインストールされていて、それでも再インストールを行いたい場合は、以下の手順を実施してください:

  1. 1. 現在のEtherSoundドライバーを最初にアンインストールする
  2. 2. コンピューターを再起動する
  3. 3. 新しいドライバーのバージョンをインストールする

ダウンロード

Firmware AxC-Dante:Rioモード用パッチ
Windows用の安定版リリース:V6.84.42(2024年5月)
インターネット接続不要のWindows用安定版リリース:V6.84.42(2024年5月)
Windows XP用 AVS-Monitor

情報

  • 追加機能: AxC-AES67カードのサポートを追加
  • 追加機能: ALP-DANTE PCIeカードのサポートを追加
  • 追加機能: ALP-AES67 PCIeカードのサポートを追加
  • 追加機能: ファンアラート機能を追加
  • 追加機能: クロックのPPM表示機能を追加
  • 追加機能: プリセット保存時にGPIOおよびオートメーション設定を含めるオプションを追加
  • 追加機能: DT4Oでチャンネルロック機能を追加
  • 修正点 : AxC-SWD5GのGUIがVLAN設定ウィンドウで点滅する問題を修正(@Ben に感謝!)
  • 修正点 : Yamahaの接頭辞(Yxxx)を持つ名称がAxC-Danteデバイスで常に許可されるように修正
  • 修正点 : AxC-ES100ファームウェア更新後のMACアドレス破損問題を修正
  • 修正点 : AxCカードのIPアドレスがJavaScript WebViewで正しく表示されない問題を修正
  • 修正点 : AV-WALLおよびAVDT-BOBデバイスで設定をファイルに保存できない問題を修正
  • 修正点 : AxC-DSPのチャンネル名・デバイス名が、シーン保存や96kHzミキサー、バックアップ時に正しく反映されない問題を修正
  • 修正点 : PCIeカードの手動再起動リクエスト処理を修正
  • 修正点 : Microsoft WebViewが過剰にインストールされる問題を修正
  • 修正点 : Dante Controllerがインストールされていない環境でのインストール問題を修正
  • 修正点 : AxC-DSPでフェーダーをダブルクリック後にフェーダーが解除されない問題を修正(@Matthias に感謝!)

Package Avs-FirmwaresBundle_25.06.02

AVS-Firmware-AVBx3_5.007.13551_L5.007
  • AVBx3 version: 5.007
    • Update code with the latest functions to manage the new AxC firmware
    • Optimization of start-up time
    • Bypass of the old method of reading the serial number when (S/N == 0) or (S/N == 0xFFFF)
    • - Allows in supervisor mode to force a new S/N on an old firmware core without S/N
    • Resolve ASRC management on AVBx3 without matrix
    • - AxC-ADSP should be in slot 2 when in ASRC mode
    • Fix the change to a new clock source that is not locked
    • The lock status of a card with multi sources only reflect the current source...
AVS-Firmware-AiC-CORE-X-A7-FPGA_1.006.14861_F1.015
  • AiC-CORE-X-A7-FPGA version: 1.015
    • Add the "Mute Slot" capability
AVS-Firmware-AiC-xCore_1.028.13058_F2.047
  • AiC-xCore version: 2.047
    • - Flash access commands optimization to speed-up firmware update
    • - Improve security access on some internal registers
AVS-Firmware-AVBx7_4.028.15841_L4.028
  • AVBx7 version: 4.028
    • Last changes since version 3.006
    • - Fixed AxC-ADSP settings when changing mode from ASRC to DSP in a preset
    • - Managing the MailBox of Slot 14 if it is available for AVBx display manager
    • - Added Mbx_Core_Info Status in Page 0 of slot 14 for AVBx display manager
    • - Adding Brightness values in page CSPR of slot 14 for AVBx display manager
    • - Added Load/Save functions in Automation
    • - Increasing max wait time for Load/Save functions to manage new firmwares
    • - Adding CoreX-FPGA MailBox Management for futur AVBx Display inetrface
    • - Triggers in automation work on change instead of level for all functions (previously this was only done for Rise/Fall/Change functions)
    • - Added management of extended SPI zones when available
    • - Address errors are now reported in QOS AxC-MEM
    • - SPI transaction optimizations
    • - Added timer for inter SPI transaction to avoid unecessary active wait at end of each transaction
    • - Management of area with extended memory space (NBPMO > 192)
    • - Modified Preset/Scene to managed extended memory space
    • - Added the slot15 throughput performance in QOS page for the read write bursts
    • - Forces now a clear of old trigger state when the trigger is off.
    • - Improved SPI Burst transfers in reading
    • - First version 4.xxx with modification of the functions associated with the M0/M4 cores
    • - The M0 CORE now manages the network parts (Ethernet, UDP and UPI)
    • - The M4 Core now manages the AxC cards (SPI, MailBox, SpiFi, Automation)
    • - The management of a Linkscript is now common and shared by the 1st and 2nd startup programs of the M4 core
    • - Periodically refresh SR1 cache to update SPI capabilities in case of firmware downgrade without reboot
    • - Added Core-FPGA for SR1 refresh and page info for the same reason
    • - Management of FPPR command and semaphore in UPI8 and Extended MailBox
    • - Add Extended FPPR MailBox flag in Core info Status register
    • - Avoid processing a new FPPR Mailbox command while waiting for an FPPR command to complete
    • - First implementation of SDR and DDR management
    • - Management of the "Wide Area" indicator of the Mailbox. When it is activated, the mailbox accesses the full size zone otherwise only the limited legacy space
    • - Management of the UDP UPI16 protocol and Wide Area to access the entire memory space of the areas.
    • - For backward compatibility reasons: UPI16 and UPI8 uses the same frame format.
    • - The Wide Area flag determines if there is an access to extended space in an area when set or to the limited legacy space when reset.
    • - Regardless of the access method (Mailbox, UPI8, ...) the use of the direct access area only gives access to the limited legacy space.
    • - Added the SLIM and WIDE mode to area management in Read/Write/T&S/T&R for Legacy/Extended area access
    • - Adapted MailBox et UPI8 to use areas in slim or wide mode
    • - Management of last version of matrix that can use multiple clusters of 8x slots x 64 channels
    • - Changed the management of SR1 and Page_info cache refresh
    • - Added Area-Burst mode tests if available during the SPI Speed adjustments at start
    • - Changed the typical SPI speeds on A7/S6
    • - Added new page in QOS area for additional CoreX LPC statuses with current LED display on front panel
    • - Changed SPI clock pin settings to fix AxC-Card-S6 SPI errors on slot4/6 of CoreX-A7
    • - Added Led Status for SPI errors detected at start
    • - Added Led Fault when GPIO/WCLK is not detected
    • - Added specific Auto Test of SPI on all slots
    • - Added a new FPPR command parameter to run specific Auto Test of SPI on all slots
    • - Fixed bug in recalling/saving scenes/presets when accessing a wide area is required to access all data
    • - Optimization of Led driver functions
    • - Fixed an issue during a soft reset where the reset was not sent to the board coprocessors in the last slot
    • - Set CoreX Status to "discovery" mode on software reset
    • - Fixed DMA issues which was introduced in previous version 4.0xx
    • - Fixed a bug in Clear Matrix introduced in previous versions 4.0xx. All patches are now cleared including for slots without a card
    • - Fixed a bug on AxC-ADSP in ASRC mode introduced in previous versions 4.0xx
    • - After a first loop discovery reset the slot where a card was not detected to give a second chance to detect them (i.e. AxC-SWD5G)
    • - Added an event area to indicate an IP address change and a Preset modification
    • - New IP/MASK address change management with deferred addresses changes that no longer requires a reboot
    • - Fixed an issue with AxC card temperature loading/management introduced in version 4.027
AVS-Firmware-AxC-GPIO-Wclk_2.000.9994_L2.000
  • AxC-GPIO-Wclk version: 2.000
    • Firmware optimization
    • Reorganization of GPI treatment with 2 couples of input voltage threshold (VIL1, VIH1) and (VIL2, VIH2)
    • Provides information status of validity for the GPIs with these 2 couples of input voltage threshold
AVS-Firmware-ALP-AES67-A7_1.043.16441_F1.190_Z2.006
  • ALP-AES67-A7 versions: 1.190 / 2.006
    • New kernel 1.8.1
    • NMOS: add IS-04/05 version to advanced pages
    • NMOS: senders/receivers list empty after registry failure with mDNS
    • NMOS: prevent users to use web port for NMOS
    • fix ICMP for unicast stream
    • NMOS: receiver label not updated until source is patched
    • NMOS: device/node properties inconsistent at startup
    • NMOS: improved registry failover resilience
    • prevent from restarting if IP is renewed when FW updating
    • Device remote command not acknowledged with command reboot
    • network vulnerabilities: disable ICMP timestamp responses
    • support for create/listen sources/sinks in the multicast range 224.x.x.x and x.x.x.255
    • Remove ASIO clock RAVENNA stream reservation limitation
    • audio mute when ST-2022 sink stops receiving on secondary port on 3-NIC devices on some configurations
    • fix on allowing custom I2S module to have 0 inputs or 0 outputs
    • Use default web service.
    • mprove audio bloc to allow asymetric driver (Play without Record and opposite)
AVS-Firmware-ALP-DANTE-A7_1.067.16416_F1.190_D11.014
  • ALP-DANTE-A7 versions: 1.190 / 11.014
    • UPI8 Evolution
    • Improve audio bloc to allow asymetric driver (Play without Record and opposite)
AVS-Firmware-AVDT-BOB-AE4IO_1.070.14448_L3.021_D1.005
  • AVDT-BOB-AE4IO versions: 3.021 / 1.005
    • Fix disconnection with several web BOB page open
    • New gain management db R68-2000 / dBu / dB legacy
AVS-Firmware-AVW-DT4I_2.087.14466_L2.112_D5.006
  • AVW-DT4I versions: 2.112 / 5.006
    • Fix: ADC init based on register detection.
    • New: Add internal IHM register in AxC-Mem Err&Tst page.
    • New: Disable LED dimmer mode in active mode.
    • New: Allow Bluetooth activation with long push on the button.
    • Fix: Bluetooth disconnection status was not working in some very case.
AVS-Firmware-AxC-ADSP_2.014.14729_F2.011_L2.016
  • AxC-ADSP versions: 2.011 / 2.016
    • New: Support UPI8 protocol.
    • New: New mailbox protocol acess and exteneded mailbox to 8 page buffer.
    • Fix: New IP stack version. Improvement of connection reliabilty.
    • Fix: new save, load internal mechanism.
    • Fix: Dynamic pagination of AxC-Mem of LPC from FPGA.
    • Fix: Update webservice: fix scene display of ADSP.
    • Fix: Channel label load / saved correctly.
    • Change the Vumeter lower limit from -48dB to -72dB
AVS-Firmware-AxC-AES67-A7_1.021.14726_F1.020_Z1.036
  • AxC-AES67-A7 versions: 1.020 / 1.036
    • Fix internal IT management to avoid flooding on burst write
    • DMA page is no longer loaded (when exists) to avoid rare cases of undesired registers writes at load
    • Change some internal I/O number registers to read-only
    • Added audio router management with default initialization.
    • Correction of channel <=> router <=> application naming
    • Added blocking of sample rate configuration from the web interface.
    • Change the Vumeter lower limit from -48dB to -72dB
AVS-Firmware-AxC-AT32IO_1.016.14642_F4.015
  • AxC-AT32IO version: 4.015
    • Change some internal I/O number registers to read-only
    • DMA page is no longer loaded (when exists) to avoid rare cases of undesired registers writes at load
AVS-Firmware-AxC-AVB_4.183.14642_F2.099_L2.039_X8.072
  • AxC-AVB versions: 2.099 / 2.039 / 8.072
    • Change some internal I/O number registers to read-only

    • DMA page is no longer loaded (when exists) to avoid rare cases of undesired registers writes at load
AVS-Firmware-AxC-AE8M_1.021.14642_F2.023
  • AxC-AE8M version: 2.023
    • Change some internal I/O number registers to read-only
    • DMA page is no longer loaded (when exists) to avoid rare cases of undesired registers writes at load
AVS-Firmware-AxC-AS16MO-V2_1.010.14274_F1.018
  • AxC-AS16MO-V2 version: 1.018
    • Change the In/Out/Global mute behaviour to ensure signal is still routed to vumeter when device muted
AVS-Firmware-AxC-AX4M_1.020.14642_F4.025
  • AxC-AX4M version: 4.025
    • Change some internal I/O number registers to read-only
    • DMA page is no longer loaded (when exists) to avoid rare cases of undesired registers writes at load
AVS-Firmware-AxC-AX4I_1.024.14642_F7.023
  • AxC-AX4I version: 7.023
    • Change some internal I/O number registers to read-only
    • DMA page is no longer loaded (when exists) to avoid rare cases of undesired registers writes at load
AVS-Firmware-AxC-CN32IO_1.015.14642_F2.020
  • AxC-CN32IO version: 2.020
    • Change some internal I/O number registers to read-only
    • DMA page is no longer loaded (when exists) to avoid rare cases of undesired registers writes at load
AVS-Firmware-AxC-DANTE_2.100.14739_F2.056_D10.062
  • AxC-DANTE versions: 2.056 / 10.062
    • DMA page is no longer loaded (when exists) to avoid rare cases of undesired registers writes at load
    • Change the Brooklyn reset system to avoid some blocking issues
    • Add remote NXAMP device monitoring ( Brooklyn3 )
    • Fix abusive lock
    • Change the Vumeter lower limit from -48dB to -72dB
AVS-Firmware-AxC-DANTE-A7_1.036.14739_F1.015_D10.062
  • AxC-DANTE-A7 versions: 1.015 / 10.062
    • Bug fix on HA-Remote configuration mode issues (internal Brooklyn reset management).
    • Extension of CSPR pages number.
    • DMA page is no longer loaded (when exists) to avoid rare cases of undesired registers writes at load
    • Add remote NXAMP device monitoring ( Brooklyn3 )
    • Fix Factory Reset
    • Fix abusive lock
    • Change the Vumeter lower limit from -48dB to -72dB
AVS-Firmware-AxC-DX8I_1.017.14649_F6.030
  • AxC-DX8I version: 6.030
    • Change some internal I/O number registers to read-only
    • DMA page is no longer loaded (when exists) to avoid rare cases of undesired registers writes at load
AVS-Firmware-AxC-ES100_1.013.13607_F27.012
  • AxC-ES100 version: 27.012
    • Bug fix on PID that could disable the ASIO capability
AVS-Firmware-AxC-GPIO16_2.002.9994_L2.002
  • AxC-GPIO16 version: 2.002
    • Firmware optimization
    • Reorganization of GPI treatment with 2 couples of input voltage threshold (VIL1, VIH1) and (VIL2, VIH2)
    • Provides information status of validity for the GPIs with these 2 couples of input voltage threshold
    • Provides relay activation status for GPOs
AVS-Firmware-AxC-MADI_2.024.14729_F12.019_L1.038
  • AxC-MADI versions: 12.019 / 1.038
    • Change some internal I/O number registers to read-only
    • DMA page is no longer loaded (when exists) to avoid rare cases of undesired registers writes at load
    • Change the Vumeter lower limit from -48dB to -72dB
AVS-Firmware-AxC-MADI_SFP_2.024.14729_F12.019_L1.038
  • AxC-MADI_SFP versions: 12.019 / 1.038
    • Change some internal I/O number registers to read-onlyy
    • DMA page is no longer loaded (when exists) to avoid rare cases of undesired registers writes at load
    • Change the Vumeter lower limit from -48dB to -72dB
AVS-Firmware-AxC-SWD5G_1.001.7086_L1.010
  • AxC-SWD5G version: 1.010
AVS-Firmware-AxC-SWD5G_1.001.7086_L1.010
  • AxC-SWD5G version: 1.010

警告:必ず、すでにEtherSoundがインストールされていないか確認してください。

Windows 10/11 では、以前のバージョンの上にEtherSoundドライバーを再インストールしてはいけません。

もし以前のバージョンがインストールされていて、それでも再インストールを行いたい場合は、以下の手順を実施してください:

  1. 1. 現在のEtherSoundドライバーを最初にアンインストールする
  2. 2. コンピューターを再起動する
  3. 3. 新しいドライバーのバージョンをインストールする
