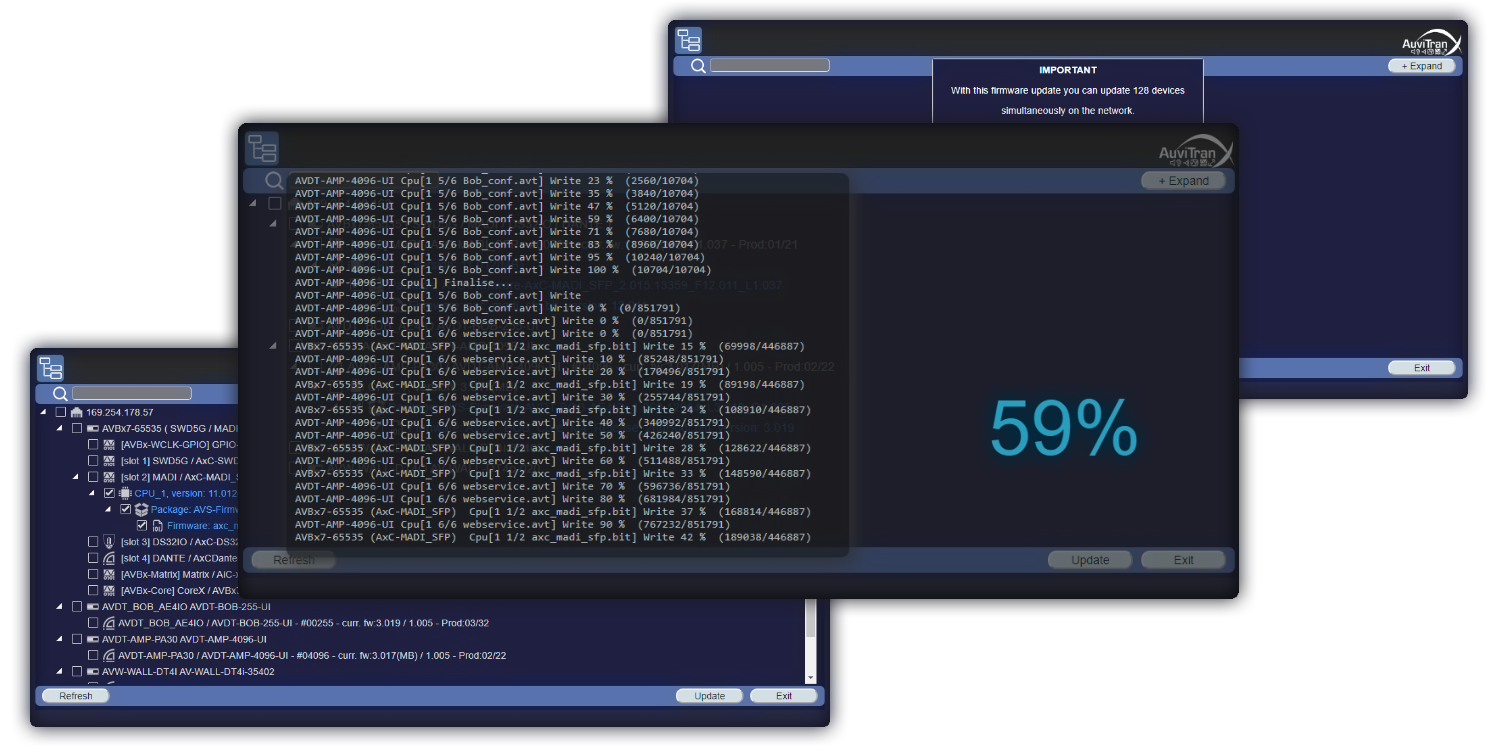

AVS-Firmware Updater

Package Avs-FirmwaresBundle_24.02.01

AVS-Firmware-AVBx3_5.007.13551_L5.007

• AVBx3 version: 5.007

• Update code with the latest functions to manage the new AxC firmware
• Optimization of start-up time
• Bypass of the old method of reading the serial number when (S/N == 0) or (S/N == 0xFFFF)
• - Allows in supervisor mode to force a new S/N on an old firmware core without S/N
• Resolve ASRC management on AVBx3 without matrix
• - AxC-ADSP should be in slot 2 when in ASRC mode
• Fix the change to a new clock source that is not locked
• The lock status of a card with multi sources only reflect the current source...

AVS-Firmware-AiC-xCore_1.028.13058_F2.047

• AiC-xCore version: 2.047

• Flash access commands optimization to speed-up firmware update
• Improve security access on some internal registers

AVS-Firmware-AVBx7_3.004.14397_L3.004

• AVBx7 version: 3.004

• Last changes since version 2.122
• Modified for migration/compilation in MCU environment
• Fix loop index overflow in QOS_SPI_Compute_Unit_Read_Write_Access
• Modifying macros for slot management
• Added additional checking for legacy and extended Mailbox
• Added QOS information for mailbox errors
• Does not trigger read-only access counting for an empty slot
• Increased Automation Capabilities
• Memorization of the last scene/preset number "Stored/Recalled" before a "Save"

AVS-Firmware-AxC-GPIO-Wclk_2.000.9994_L2.000

• AxC-GPIO-Wclk version: 2.000

• Firmware optimization
• Reorganization of GPI treatment with 2 couples of input voltage threshold (VIL1, VIH1) and (VIL2, VIH2)
• Provides information status of validity for the GPIs with these 2 couples of input voltage threshold

AVS-Firmware-ALP-AES67_1.005.14420_F1.072_D1.034

• ALP-AES67 versions: 1.072 / 1.034

• New ALP-AES67 PCIe card

AVS-Firmware-ALP-DANTE-A7_1.030.14417_F1.072_D10.056

• ALP-DANTE-A7 versions: 1.072 / 10.056

• Fix invalid flash commands.
• Fix timer management.
• Add external synchronisation capablity.
• New Spi V2 with brooklyn3.
• Fix leds management.
• Fix mute management for proper VuMeters behaviour.
• Fix "lock" bit now always asserted.
• Fix IP.
• New kernel 4.2.7.7 for brooklyn3.
• New BBE 4.4.1.3 for brooklyn2.
• Fix switch management (port 5).

AVS-Firmware-AVDT-BOB-AE4IO_1.070.14448_L3.021_D1.005

• AVDT-BOB-AE4IO versions: 3.021 / 1.005

• Fix disconnection with several web BOB page open
• New gain management db R68-2000 / dBu / dB legacy

AVS-Firmware-AVW-DT4I_2.087.14466_L2.112_D5.006

• AVW-DT4I versions: 2.112 / 5.006

• Fix: ADC init based on register detection.
• New: Add internal IHM register in AxC-Mem Err&Tst page.
• New: Disable LED dimmer mode in active mode.
• New: Allow Bluetooth activation with long push on the button.
• Fix: Bluetooth disconnection status was not working in some very case.

AVS-Firmware-AxC-ADSP_2.013.14502_F2.009_L2.016

• AxC-ADSP versions: 2.009 / 2.016

• New: Support UPI8 protocol.
• New: New mailbox protocol acess and exteneded mailbox to 8 page buffer.
• Fix: New IP stack version. Improvement of connection reliabilty.
• Fix: new save, load internal mechanism.
• Fix: Dynamic pagination of AxC-Mem of LPC from FPGA.
• Fix: Update webservice: fix scene display of ADSP.
• Fix: Channel label load / saved correctly.

AVS-Firmware-AxC-AES67-A7_1.017.14457_F1.017_Z1.034

• AxC-AES67-A7 versions: 1.017 / 1.034

• Add Manage a parametrable soft ramp-up/down when mute/unmute.
• Add fallback.
• Add Matrix management.
• Add Switch management.
• Add Firmware 1.6.0: (build: 56768) .
• Add Hard fault bit management.
• Fix switch autoneg (port 5).
• Fix Event LED (rack front panel) that can sometimes blink even if there is no event

AVS-Firmware-AxC-AT32IO_1.015.14271_F4.014

• AxC-AT32IO version: 4.014

• Change the In/Out/Global mute behaviour to ensure signal is still routed to vumeter when device muted

AVS-Firmware-AxC-AVB_4.182.14246_F2.098_L2.039_X8.072

• AxC-AVB versions: 2.098 / 2.039 / 8.072

• Manage a configurable soft ramp-up/down when mute/unmute

AVS-Firmware-AxC-AE8M_1.020.14271_F2.022

• AxC-AE8M version: 2.022

• Change the In/Out/Global mute behaviour to ensure signal is still routed to vumeter when device muted

AVS-Firmware-AxC-AS16MO-V2_1.010.14274_F1.018

• AxC-AS16MO-V2 version: 1.018

• Change the In/Out/Global mute behaviour to ensure signal is still routed to vumeter when device muted

AVS-Firmware-AxC-AX4M_1.019.14271_F4.024

• AxC-AX4M version: 4.024

• Add new feature : Digital Trim
• Change the In/Out/Global mute behaviour to ensure signal is still routed to vumeter when device muted

AVS-Firmware-AxC-AX4I_1.023.14271_F7.022

• AxC-AX4I version: 7.022

• Change the In/Out/Global mute behaviour to ensure signal is still routed to vumeter when device muted

AVS-Firmware-AxC-CN32IO_1.014.14271_F2.019

• AxC-CN32IO version: 2.019

• Change the In/Out/Global mute behaviour to ensure signal is still routed to vumeter when device muted

AVS-Firmware-AxC-DANTE_2.092.14454_F2.052_D10.056

• AxC-DANTE versions: 2.052 / 10.056

• Fix invalid flash commands.
• Fix timer management.
• Fix name management without Yamaha mode.
• Fix Rio mode with brooklyn3.
• New Spi V2 with brooklyn3.
• Fix name synchronisation AVBx / Dante
• Change the In/Out/Global mute behaviour to ensure signal is still routed to vumeter when device muted
• Fix IP
• New kernel 4.2.7.7 for brooklyn3
• New BBE 4.4.1.3 for brooklyn2
• Fix switch management
• Fix Event LED (rack front panel) that can sometimes blink even if there is no event

AVS-Firmware-AxC-DANTE-A7_1.026.14457_F1.009_D10.056

• AxC-DANTE-A7 versions: 1.009 / 10.056

• Manage a parametrable soft ramp-up/down when mute/unmute.
• Fix name synchronisation AVBx / Dante.
• Fix IP.
• New kernel 4.2.7.7 for brooklyn3.
• New BBE 4.4.1.3 for brooklyn2brooklyn2.
• Fix switch management.
• Fix Event LED (rack front panel) that can sometimes blink even if there is no event

AVS-Firmware-AxC-DX8I_1.014.14271_F6.028

• AxC-DX8I version: 6.028

• Change the In/Out/Global mute behaviour to ensure signal is still routed to vumeter when device muted

AVS-Firmware-AxC-ES100_1.013.13607_F27.012

• AxC-ES100 version: 27.012

• Bug fix on PID that could disable the ASIO capability

AVS-Firmware-AxC-GPIO16_2.002.9994_L2.002

• AxC-GPIO16 version: 2.002

• Firmware optimization
• Reorganization of GPI treatment with 2 couples of input voltage threshold (VIL1, VIH1) and (VIL2, VIH2)
• Provides information status of validity for the GPIs with these 2 couples of input voltage threshold
• Provides relay activation status for GPOs

AVS-Firmware-AxC-MADI_2.019.14214_F12.014_L1.038

• AxC-MADI versions: 12.014 / 1.038

• Manage a soft ramp-up/down when mute/unmute

AVS-Firmware-AxC-MADI_SFP_2.021.14271_F12.016_L1.038

• AxC-MADI_SFP versions: 12.016 / 1.038

• Manage a configurable soft ramp-up/down when mute/unmute
• Change the In/Out/Global mute behaviour to ensure signal is still routed to vumeter when device muted

AVS-Firmware-AxC-SWD5G_1.001.7086_L1.010

• AxC-SWD5G version: 1.010

• AVY16-ES100 Version: 0xE06 (EtherSound kernel v3.09), improved reliability
• AVY16-ES100 Version: 0xE05 ASIO Version (EtherSound kernel v3.09)
• AVY16-ES100 Version: 0xE03 VuMeter Version (EtherSound kernel v3.09)
• AVP4-ES100 version: 0x1302 (EtherSound kernel v3.09)
• AVA4-ES100 version: 0x1604 (EtherSound kernel v3.09)
• AVM500-ES Version: 0x110E/0x118E (EtherSound kernel v3.09) - Please refer to user's manual for update procedure
• AVNF49-ES100 Version: 0x1002 Generic device monitoring version, 0x1003 NXAMP device monitoring version
• AV3rd-ES100 Version: 0xF07 (EtherSound kernel v3.09), 3rd port access correction
• AVRed-ES100 Version: 0xF01 (EtherSound kernel v3.09)
• AVi64-ES100 version: 0x1203 (EtherSound kernel v3.09) Rev. 2
• AVB32 Kit ES100 Version: 0x1504 (EtherSound kernel v3.09)
• AVKit-ES100 Version: 0x204 (EtherSound kernel v3.09)

It also includes previous firmwares, and partners firmware:

• Yamaha Firmware Version: 0xC18, 0xC16, 0xC12
• Allen and Heath Firmware Version: 0x903 rev 2
• Innovason Firmware Version: 0x106

• AxC-ES100 Version: 0x1A06 (EtherSound kernel v3.09)/0x202
• AVY16-ES100 Version: 0xE01
• AVY16-ES Version: 0x104, 0x103
• AVB32-ES Version: 0x605
• AVB32 Kit ES100 Version: 0x1502, 0x1503
• AVKit for AD8HR Version: 0x202
• AVRed-ES Version: 0x404, 0x403
• AVM500-ES Version: 0x110D/0x118D, 0x110C/0x118C, 0x110B/0x118B, 0x110A/0x1189

Click here to see older versions and release notes.
