AVDT-BOB Digital Signal Processing Overview

• The AVDT-BOB manages 2 kinds of inputs and 2 kinds of outputs:
• 2 to 4 analog Mic/Line inputs named “Mic/Line1”, “Mic/Line2”.. are coming from the Mic/Line In connectors
• 4 Dante inputs named “Dante In1” up to “Dante In4” are coming from Dante network via the Gigabit Ethernet Main or Aux ports.
• 2 to 4 analog Line outputs named as “Out1”, “Out2″… are connected to Line Out connectors.
• 4 Dante outputs named “Dante Out1” up to “Dante Out4” are sending to Dante network via the Gigabit Ethernet Main or Aux ports.

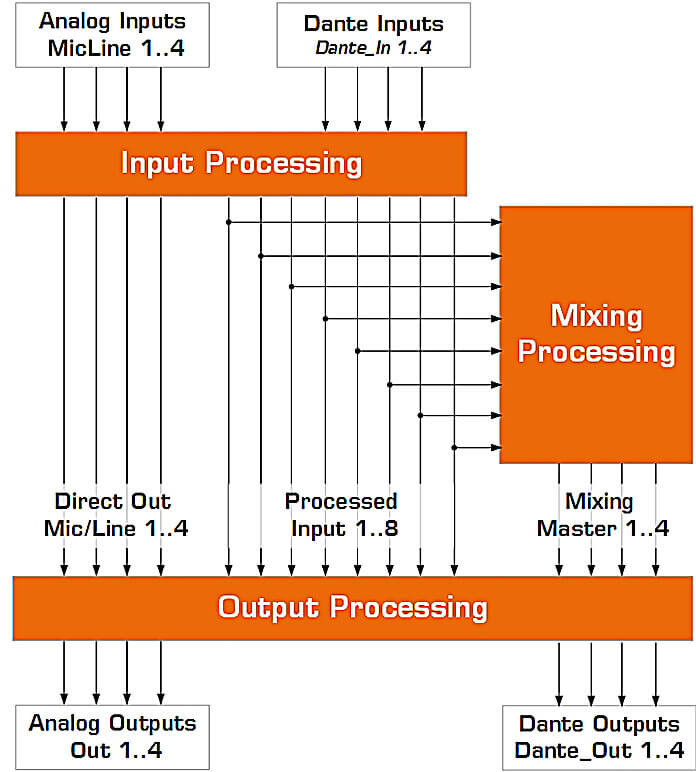

The AVDT-BOB digital processing is divided in 3 main processing blocks interconnected:

• The Input processing block
• The Mixing processing block
• The Output Processing block

The Input Processing block manages up to 4 analog Mic/Line inputs and the 4 Dante inputs. It delivers 4 Mic/Line Direct Out (just after preamp gain and phase inverter process) and 8 processed inputs that are sent to Mixing Processing and to Output Processing:

• 4x Equalizations plus Limiter Compressor plus Noise gate processing can be assigned to 4 inputs (i.e. Mic/Line or Dante inputs).
• 8x faders allow to manage the Mic/Line preamp gain and digital Dante input gain.
• Each input can be enabled or muted and inverted.
• 48V Phantom power can be set individually to any Mic/Line input.

The Mixing Processing block manages 4 independent Master mixers that are sent to the Output Processing Block.

• Each Master mixer can mix up to 8 inputs (i.e. the Mic/Line and the Dante processed inputs) via individual faders controlling the input mixing gains.
• Each input of a Master mixer can be enabled or muted.
• Each mixer has an Master fader controlling the Master mixer output level.

The Output processing block manages up to 4 analog outputs and the 4 Dante outputs.
The source of any output can be selected between one of the 4 Mic/Line DirectOut or the 4 processed inputs (Mic/line and Dante) or the 4 Master mixers.

• 4x Equalizations plus Limiter Compressor plus Noise gate processing are available on the 4 analog outputs.
• 8x faders allow to manage the output gains.
• Each output can be enabled or muted.
